Module, Power, Blower Motor: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

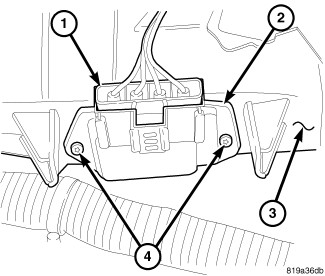

GC0082709Courtesy of CHRYSLER GROUP, LLC
  1. Position the blower motor power module (2) onto the bottom of the HVAC housing (3).
  2. Install the two screws (4) that secure the blower motor power module to the HVAC housing. Tighten the screws to 1.1 N.m (10 in. lbs.).
  3. Connect the wire harness connector (1) to the blower motor power module.
  4. Reconnect the negative battery cable.
