Single Zone/Dual Zone Driver Side

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0089506Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

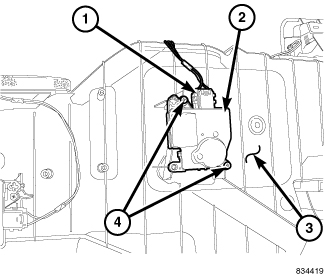

  3. Disconnect the HVAC wire harness connector (1) from the blend door actuator (2) located at the rear of the HVAC housing (3).
  4. Remove the two screws (4) that secure the blend door actuator to the HVAC housing and remove the actuator.
