Valve, Short Runner: Installation: 5.7L

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

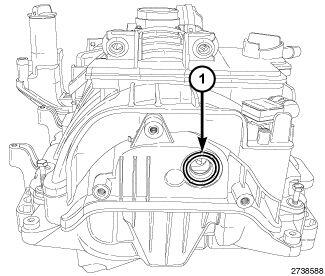

Install a new short runner valve actuator rubber O-ring seal (1).

Courtesy of CHRYSLER GROUP, LLC
Position the short runner valve actuator, install the retaining bolts (1) and tighten to 5 N.m (44 in. lb.).

Fig 1: Intake Manifold Loosening/Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Install the intake manifold and throttle body as an assembly. Refer to MANIFOLD, INTAKE, CNG, INSTALLATION, 5.7L .

Courtesy of CHRYSLER GROUP, LLC
Connect the negative battery cable (1).
