Injector(S), Fuel: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

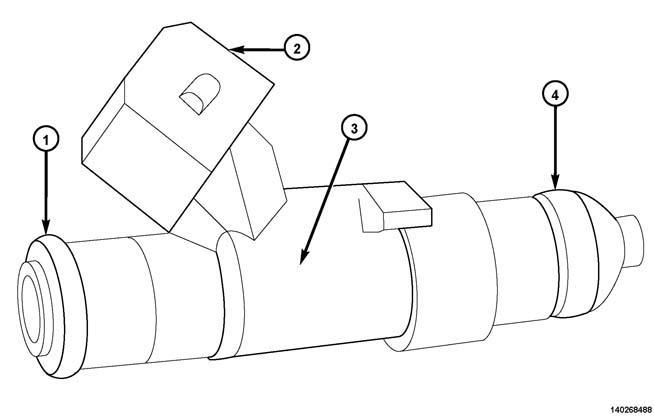

The Compressed Natural Gas (CNG) style fuel injectors and the standard gasoline style fuel injector work and perform the same. Both injectors utilizes:
- Upper O-ring
- Electrical Connector
- Body Externally and Internally
- Lower O-ring
The CNG injectors have a more noticeable internal ticking do to the absence of a liquid, to aid in muffling the internal solenoid. This is considered normal injector operation.
The CNG injector pulse width stays energized longer in order to maintain the proper engine performance. Especial during the liquid fuel side switching over to CNG fuel side.
