Sensor, TMAP: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Check condition of TMAP sensor O-ring.
- Clean the TMAP sensor mounting area at intake manifold plenum.
- Lubricate TMAP sensor O-ring with clean engine oil.

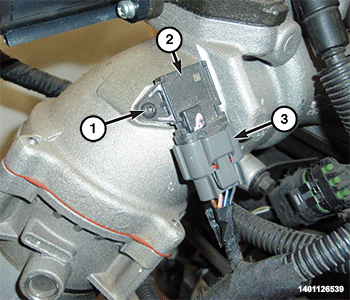

- Install the TMAP sensor (2) and tighten the screw (1) to 1 N.m (9 in. lbs.).
- Connect the TMAP sensor wire harness connector (3).
- Install the engine cover (3) and tighten the bolts (1) to 10 N.m (89 in. lbs.).
- Install the engine oil dipstick (2).
- Connect both of the negative battery cables.
