Sensor, TMAP: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

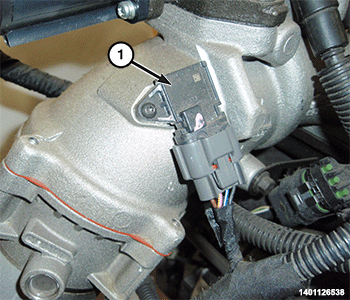

The TMAP combination, dual function Intake Manifold Air Temperature/MAP Sensor (1) and is located on the intake manifold plenum after the EGR air flow control valve.
