Sensor, Inlet Air Temperature/Pressure: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate both of the negative battery cables.

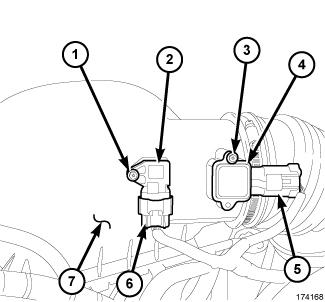

    GC0108848Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the inlet air temperature/pressure sensor wire harness connector (6).
  3. Remove the screw (1) and the inlet air temperature/pressure sensor (2) from air cleaner cover.
  4. Check condition of sensor O-ring.
