Sensor, Accelerator Pedal Position: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not attempt to separate or remove the Accelerator Pedal Position Sensor (APPS) from the accelerator pedal assembly. The APPS and the accelerator pedal is replaced as an assembly. If the sensor is removed from the pedal, the electronic calibration may be destroyed.

Courtesy of CHRYSLER GROUP, LLC

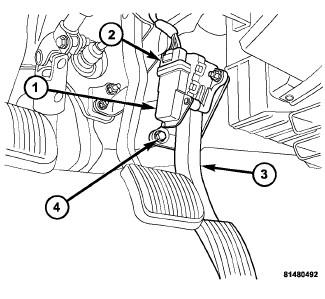

Install pedal and Accelerator Pedal Position Sensor (APPS) assembly (3).
Install APPS two mounting nuts and lower mounting bolt (4) and securely tighten.
Connect the APPS wire harness connector (2).
Connect both of the negative battery cables.
If necessary, use a Scan Tool to erase any Diagnostic Trouble Codes (DTC's).
