Injector(S), Fuel: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

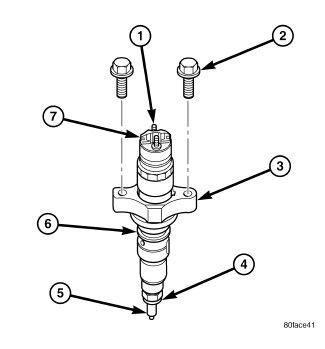

Six individual, solenoid actuated high-pressure fuel injectors are used (6). The injectors are vertically mounted into a bored hole in the top of the cylinder head. This bored hole is located between the intake/exhaust valves.
High-pressure connectors (13), mounted into the side of the cylinder head, connect each fuel injector to each high-pressure fuel tube (1).
