Tank, Fuel: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. If fuel pump module installation is necessary. Refer to MODULE, FUEL PUMP, INSTALLATION .
  2. Secure the fuel tank onto a suitable hydraulic jack with a fuel tank adapter.
  3. Raise and position the fuel tank leaving room to make the connections at the top of the fuel tank.
    GC0180005Courtesy of CHRYSLER GROUP, LLC

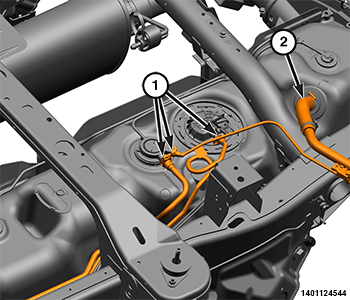

  4. Connect the quick-connect fittings (1) at the top of tank.
  5. Connect the fill hose to the tank and securely tighten the retaining clamp (2).
  6. Connect the electrical connector to the fuel pump module.
    GC0179999Courtesy of CHRYSLER GROUP, LLC
  7. Raise the fuel tank until snug to the body.

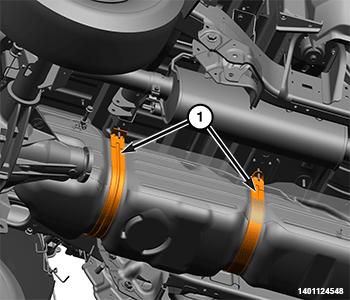

  8. Install the fuel tank straps (1).
  9. Install the strap nuts and tighten to 41 N.m (30 ft. lbs.).
  10. Remove the hydraulic jack.
    GC0180003Courtesy of CHRYSLER GROUP, LLC

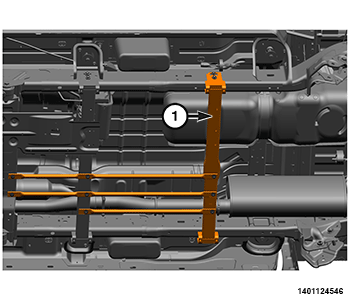

  11. Install the skid plate crossmember (1).
    GC0180012Courtesy of CHRYSLER GROUP, LLC

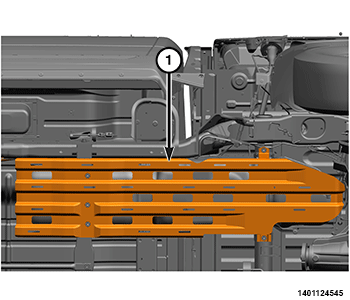

  12. Install the fuel tank skid plate (1).
    GC0088122Courtesy of CHRYSLER GROUP, LLC
  13. Connect the fuel line quick-connect fitting at the fuel rail (1).
  14. Connect the negative battery cable.
  15. Fill the fuel tank.
  16. Start the engine and check for leaks at all fuel tank connections.
