Relay, Fuel Injector: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

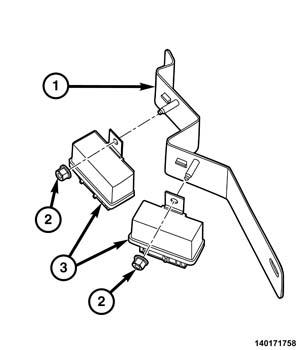

- Position the fuel injector relay (3) onto the relay bracket (1).
- Install the nuts (2). Tighten to 6.8 N.m (60 in. lbs.).

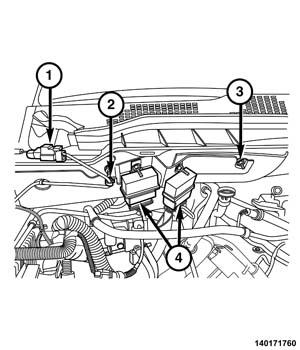

- If removed, position the relay bracket onto the bracket studs. Tighten nuts (3) to 9 N.m (80 in. lbs.).
- Install the relay electrical connectors (4).
- Install the hood light wiring retainer (2) to the stud.
- Connect the battery negative cable.
