Sensor, Fuel Pressure: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate both of the negative battery cables.
Remove the oil dipstick (2).
Remove bolts (1) and the engine cover (2).

Courtesy of CHRYSLER GROUP, LLC
Cut the cable tie and position aside the bulk head connector (1).
If equipped, remove the transmission dipstick (3).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the exhaust pressure sensor wire harness connector (2).
Disconnect the EGR cooler bypass valve wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the crankcase pressure sensor 2 wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect crankcase pressure sensor 1 wire harness connectors (7).

Courtesy of CHRYSLER GROUP, LLC
Disconnect both fuel injector harness connectors (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the CCV oil drains hoses (3) from cylinder head cover.

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel tube silencer (1).

Courtesy of CHRYSLER GROUP, LLC
Remove two bolts (4) and No. 6 fuel tube shield (5) at rear of cylinder head.
Remove cylinder No. 5 and No. 6 fuel lines (3 and 6).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel pressure sensor wire harness connector (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not use an impact socket, the socket wall is too thick and will not work.

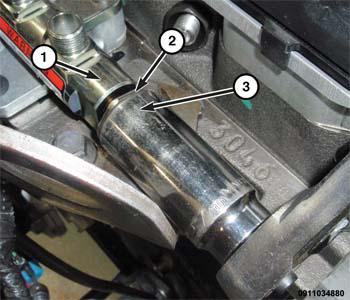

Using a 27 mm thin walled socket (3), remove fuel pressure sensor (2).
