6.7L Diesel
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate both of the negative battery cables.
- Remove the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL
.

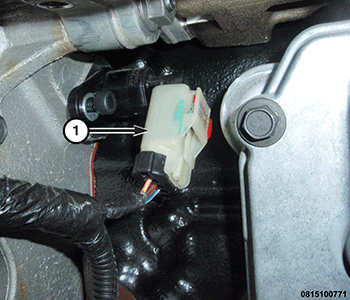

- Disconnect the Camshaft Position (CMP) sensor wire harness connector (1).

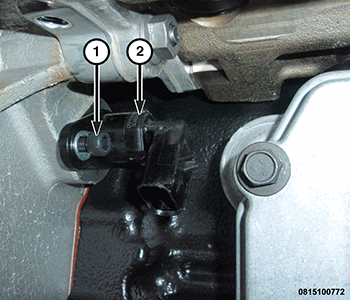

- Remove the bolt (1) and the CMP sensor (2).

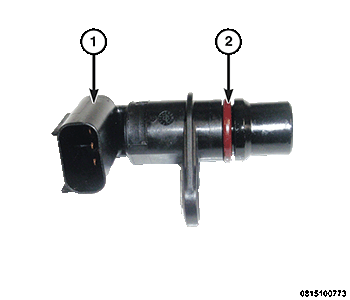

- Check the condition of the O-ring seal (2) and replace if necessary.
