Antenna, Remote Start: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

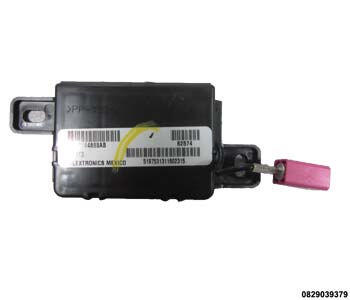

The Remote Start Antenna Module Assembly consists of an electrical connection to the Radio Frequency (RF Hub), a length of coaxial cable and two mounting clips. The antenna is located in the drivers rear cab above the headliner.
The antenna which is printed on a circuit board in an enclosed plastic housing that is fed regulated 5v DC (+/-5%) via the attached coaxial cable pigtail. The Remote Start Antenna captures radiated RF signals that are transmitted from the Key FOB transmitter throughout the intended broadcast bands. The RF signal captured is then amplified and sent to the desired receiver/tuner.
