Sensor, Oil Temperature: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
NOTE:
Apply Mopar® Thread Sealant with PTFE to the sensor threads before installing into the engine block.

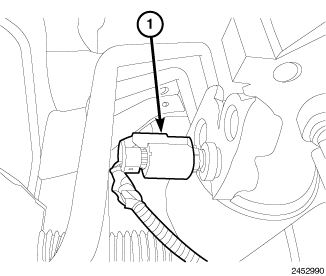

- Install the oil temperature sensor (1).
 Courtesy of CHRYSLER GROUP, LLC
|
- Connect the oil temperature sensor electrical connector (1).
- Connect the negative battery cable.
