Sensor, Oil Pressure: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0161535Courtesy of CHRYSLER GROUP, LLC
  1. If equipped, remove the secondary generator. Refer to GENERATOR, REMOVAL .

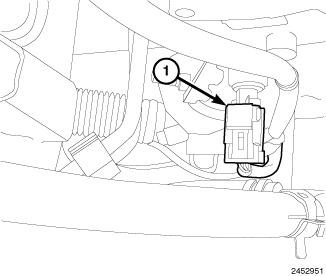

    GC0088116Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect and isolate the negative battery cable.
  3. Disconnect the oil pressure sensor electrical connector (1).
    GC0088117Courtesy of CHRYSLER GROUP, LLC
  4. Remove the oil pressure sensor (1).
