Cooler And Lines, Oil: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Raise vehicle on hoist.
- If equipped, remove the secondary generator. Refer to GENERATOR, REMOVAL .
- Drain cooling system. Refer to STANDARD PROCEDURE .
- Remove the oil filter funnel.

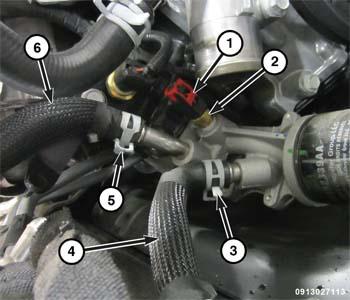

- Disconnect the oil temperature sensor (2) electrical connector (1).
- Disconnect the oil cooler coolant hoses (4, 6).
- Remove oil filter.

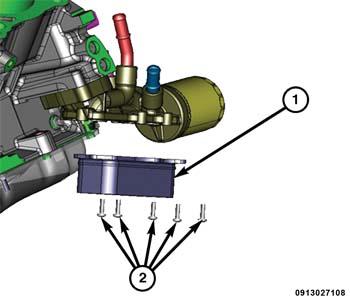

- Separate the oil cooler (1) from the adapter.

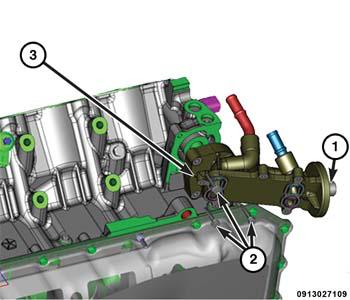

- Remove the adapter (3) from the engine.
