Insulator, Engine Mount, Rear (Transmission): Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

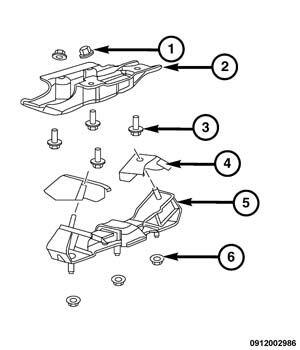

GC0154452Courtesy of CHRYSLER GROUP, LLC
NOTE:

4wd mount shown. 2wd mount similar.

  1. Raise the vehicle on a hoist.
  2. Remove the lower nuts (6) from the transmission mount (5).
  3. Using a suitable jack. Raise the transmission off the crossmember.
  4. Remove the bolts (3) that secure the upper transmission mount bracket (2) to the transmission.
  5. Remove the rear mount assembly from vehicle.
  6. Remove the transmission mount nuts (1) from the upper transmission mount bracket.
  7. Separate the insulator from the transmission mounting bracket.
  8. Remove the transmission mount heat shields (4).
