Cover(S), Engine Timing: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate both of the battery negative cables.
  2. Remove shroud assembly, viscous fan, and fan drive. Refer to FAN, COOLING, VISCOUS, REMOVAL .
  3. Remove the bolt (2) and the accessory drive belt tensioner (1).
    GC0155262Courtesy of CHRYSLER GROUP, LLC
  4. Raise and support the vehicle.
  5. Remove the three bolts (2) and position aside power steering pump (2).
    G00615891Courtesy of CHRYSLER GROUP, LLC
  6. Remove the crankshaft damper. Refer to DAMPER, VIBRATION, REMOVAL, 6.7L .
  7. Remove support and lower the vehicle.
    GC0108451Courtesy of CHRYSLER GROUP, LLC

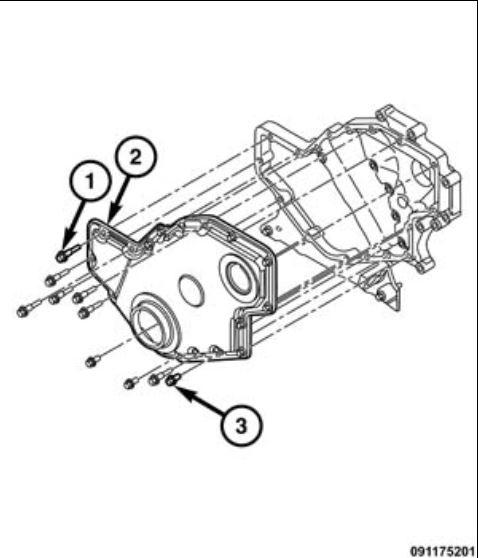

  8. Remove the bolts (1, 3) and the timing cover (2) by gently prying the cover away from the housing, taking care not to mar the gasket surfaces.
    G00615892Courtesy of CHRYSLER GROUP, LLC
  9. Support the engine timing cover on a flat work surface, and using a suitable punch (1) and hammer, drive the old seal (2) out of the engine timing cover from the front side.
    GC0155199Courtesy of CHRYSLER GROUP, LLC
