New Design Front Seal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

The seal lip and the sealing surface on the crankshaft must be free of all oil residue, to prevent leaks. The crankshaft and seal surface must be completely dry when the seal is installed.

  1. A new oil seal must be used any time the front cover is removed and reinstalled (Refer to 09 - Engine/Engine Block/SEAL, Crankshaft Oil, Front/Removal and Installation). New front cover assemblies come with a new oil seal pre-installed.
  2. Clean the cover and the gear housing gasket mating surfaces and use caution not to damage the surface. Ensure these surfaces are clean of prior sealant material and do not sand these mating surfaces as this will cause potential leaks. Ensure the front crankshaft seal lip and the crankshaft mating surfaces are free from all oil residue to prevent seal leaks.
  3. Inspect the gear housing and front cover for damage or cracks and replace if necessary. Inspect the crankshaft mating surface for any grooves or nicks that would affect the integrity of the new seal. Ensure the surface is free of debris before installing the crankshaft seal.

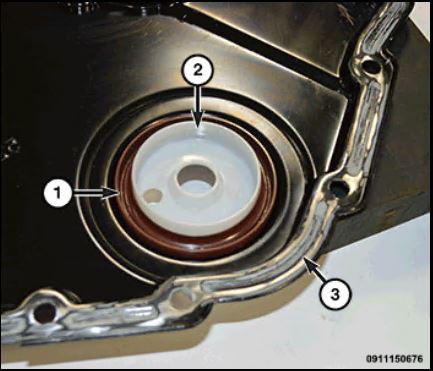

  4. If equipped, remove and discard the plastic seal pilot (2) from the front cover (3).
    G00615893Courtesy of CHRYSLER GROUP, LLC

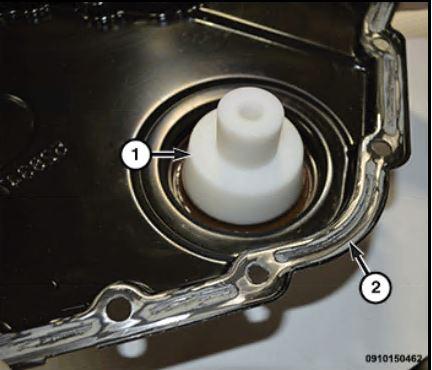

  5. Ensure the tool surface (1) is clean and free of grooves or nicks.
  6. Place the Tool, Timing Cover Alignment 2063200090 (1) on a level work surface, and push the front cover assembly (2) onto the tool (1). The front cover assembly is properly seated to the tool when the front face of the cover bottoms out on the magnetic surface of the tool.
    G00615894Courtesy of CHRYSLER GROUP, LLC

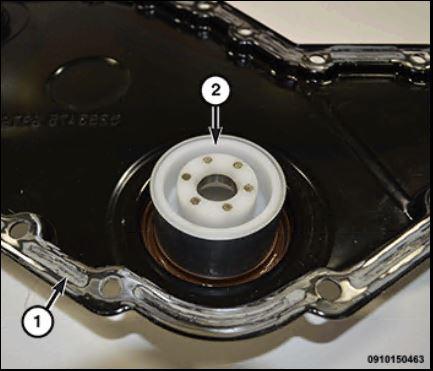

  7. Remove the top cone section of the Timing Cover Alignment Tool, while leaving the bottom section of the Timing Cover Alignment Tool (2) installed in the front cover (1).
    G00615895Courtesy of CHRYSLER GROUP, LLC
    NOTE: Front cover must be installed on the engine within 10 minutes of applying sealant.
  8. Apply a bead of Mopar® Silicone Rubber Adhesive Sealant or equivalent to the engine side of the cover only. Be sure to surround all through the holes.

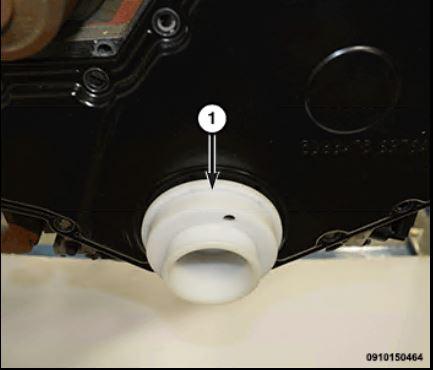

  9. Position the bottom section of the Timing Cover Alignment Tool (1) to the crankshaft nose, and install the front cover assembly to the engine by pushing evenly on the cover.
    G00615896Courtesy of CHRYSLER GROUP, LLC
  10. Install one bolt at the 3 o'clock and another at the 9 o'clock positions finger tight.

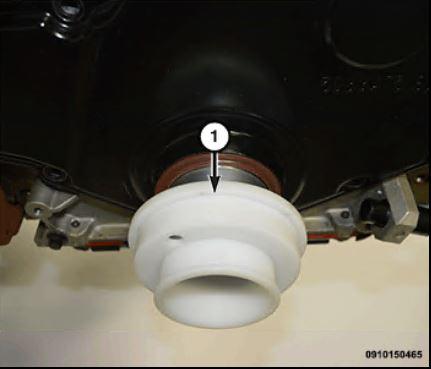

  11. Remove the bottom section of the Timing Cover Alignment Tool (1).
    G00615897Courtesy of CHRYSLER GROUP, LLC
  12. Install the remaining bolts (1, 3) finger tight. Tighten the bolts in a clockwise direction starting with the bolt above the fuel pump access cover to 24 N.m (18 ft. lbs.).
    GC0155255Courtesy of CHRYSLER GROUP, LLC
  13. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  14. Install the vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION, 6.7L .
  15. Install the power steering pump. Refer to PUMP, INSTALLATION .
    G00615891Courtesy of CHRYSLER GROUP, LLC
  16. Install the accessory drive belt tensioner (1). Tighten the bolt (2) to 43 N.m (32 ft. lbs.).
    GC0155262Courtesy of CHRYSLER GROUP, LLC
  17. Install the fan drive, viscous fan, and the shroud assembly. Refer to FAN, COOLING, VISCOUS, INSTALLATION .
  18. Connect both of the battery negative cables.
  19. Start engine and take vehicle on a short test drive. Verify no oil leak is present by using a blacklight for inspection. Ensure there is dye in the oil prior to inspection of oil leak after front crank seal is installed.
