Sensor, Turbocharger Speed: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

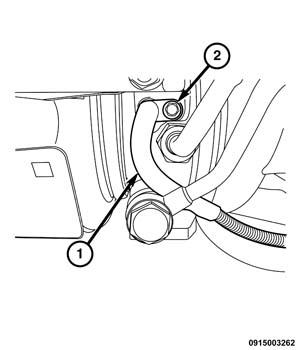

GC0155237Courtesy of CHRYSLER GROUP, LLC
  1. Install the turbocharger speed sensor (1). Tighten the bolt (2) to 10 N.m (89 in. lbs.).
  2. Using NEW  sealing washers, install turbocharger the coolant line. Tighten the banjo bolt to 24 N.m (18 ft. lbs.).
    GC0155256Courtesy of CHRYSLER GROUP, LLC
  3. Position the NOx wire harness and the turbocharger speed sensor wire harness into retainer clip and install the bolt to turbocharger actuator. Tighten bolt to 11 N.m (8 ft. lbs.).
  4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0155205Courtesy of CHRYSLER GROUP, LLC
  5. Position the NOx wire harness and the turbocharger speed sensor wire harness and close the retainer clip (1).
  6. Using a cable tie (2), tie the NOx sensor wire harness and the turbocharger speed sensor wire harness together.
    GC0155287Courtesy of CHRYSLER GROUP, LLC
  7. Connect the speed sensor wire harness connector (1).
  8. Install the right wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE .
  9. Remove support and lower the vehicle.
  10. Connect both of the negative battery cables.
