Cooler And Hoses, Charge Air: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

If the engine was just turned off, the air intake system tubes may be hot.

  1. Disconnect and isolate both of the negative battery cables.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the right wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE .
  4. Remove the left wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE .

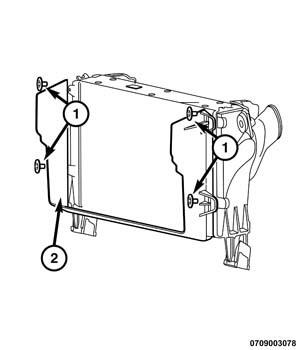

    GC0155335Courtesy of CHRYSLER GROUP, LLC
  5. Remove the four bolts (1) from the Charge Air Cooler (CAC) front shroud (2).

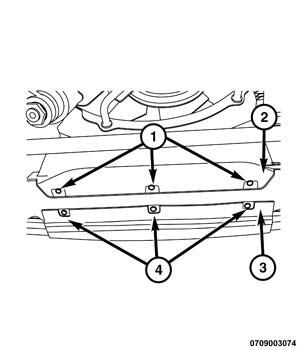

    GC0155367Courtesy of CHRYSLER GROUP, LLC
  6. Remove push pins (4) and the front CAC Shroud (3).
  7. Remove push pins (1) and the rear CAC Shroud (2).

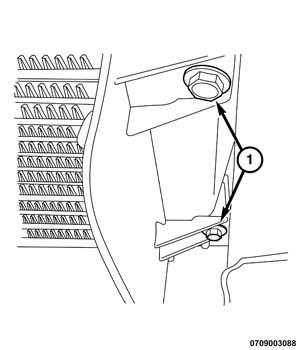

    GC0155102Courtesy of CHRYSLER GROUP, LLC
  8. Remove the right side bolts (1) from the CAC rear shroud.

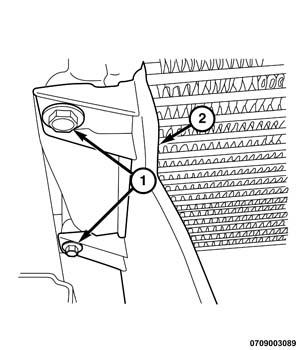

    GC0155140Courtesy of CHRYSLER GROUP, LLC
  9. Remove the left side bolts (1) from the CAC rear shroud (2).

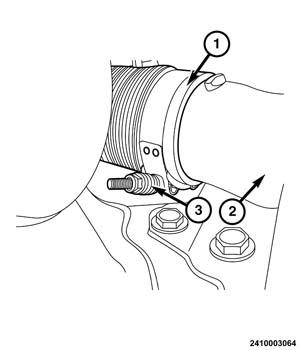

    GC0155222Courtesy of CHRYSLER GROUP, LLC
  10. Loosen clamp (3) and disconnect the right CAC hose (1) from cooler (2).

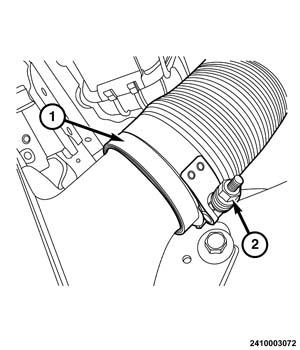

    GC0155332Courtesy of CHRYSLER GROUP, LLC
  11. Loosen clamp (2) and disconnect the left CAC hose (1) from cooler.
    GC0155217Courtesy of CHRYSLER GROUP, LLC
  12. Remove the left side CAC bracket bolt (2).

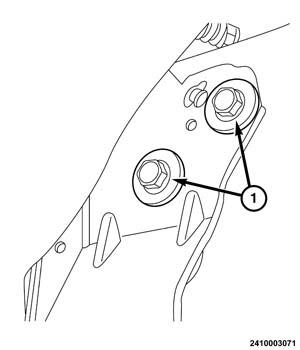

    GC0155234Courtesy of CHRYSLER GROUP, LLC
  13. Remove right side bolts (1) and the CAC
  14. If required, remove bolt and the right side CAC mounting bracket.
  15. If required, remove bolt and the left side CAC support bracket.
