Manifold, Exhaust: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

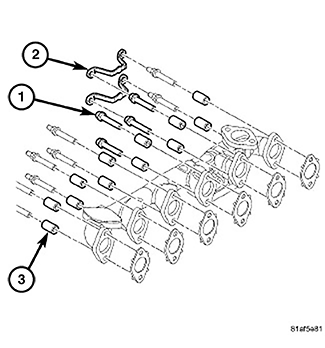

GC0173994Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate both of the negative battery cables.
  2. Remove the EGR cooler. Refer to COOLER, EGR, REMOVAL .
  3. Remove the exhaust pressure tube. Refer to SENSOR, EXHAUST PRESSURE, REMOVAL .
  4. Remove the nuts and the exhaust manifold heat shield.
  5. Remove the turbocharger. Refer to TURBOCHARGER, REMOVAL, 6.7L .
  6. Remove the two rear exhaust manifold bolt lock plates (2).
  7. Remove the bolts (1), spacers (3), and the exhaust manifold.
