Tappet(S), Valve: Inspection
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

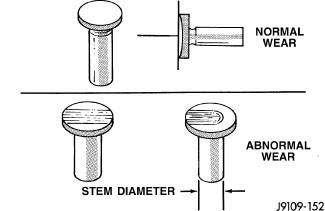

- Visually inspect the tappet and the tappet socket, stem, and face for excessive wear, cracks, or obvious damage.
- Measure the tappet stem diameter. Replace the tappet if it falls below the minimum size.
| Tappet Stem Diameter |
Metric |
Standard |
| MIN |
15.936 mm |
0.627 in. |
| MAX |
15.977 mm |
0.629 in. |
