Standard Procedure - Transmission Cooler Line Quick Connect Fitting Disassembly/Assembly: Connect
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

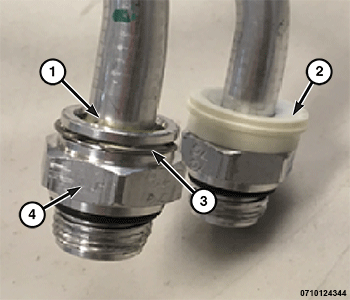

| 1 - QUICK CONNECT FITTING |
| 2 - CLIP |
| 3 - OIL COOLER LINE |
| 4 - DUST CAP |
- Align transmission cooler line with quick connect fitting while pushing straight into the fitting.
- Push in on transmission cooler line (1) until a "click" is heard or felt.

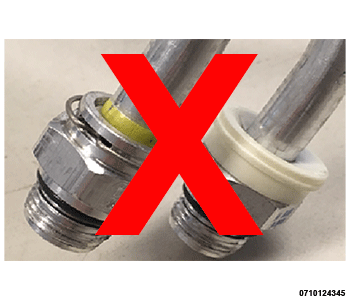

- If you see the yellow line sticking above the coupling and don't hear or feel the click the transmission line it is not fully seated.
- Slide dust cap down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. Dust cap will only snap over quick connect fitting when the transmission cooler line is properly installed.
- If dust cap will not snap into place, repeat assembly step 2.NOTE:

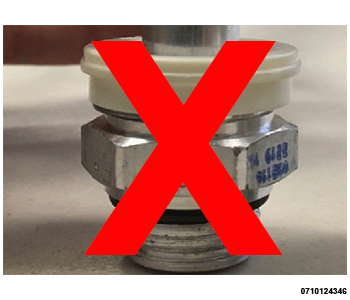

A properly installed dust cap will be fully seated against the quick connect coupling (As shown in Fig 1).
