Sensor, Coolant Level: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Install the coolant level sensor (1).

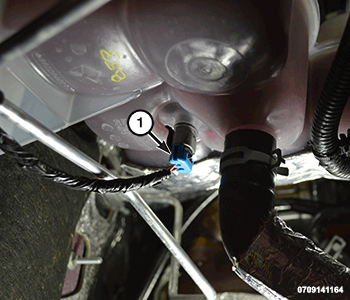

- Connect the coolant level sensor wire harness connectors (1).
- Install the right front wheelhouse splash shield (Refer to INSTALLATION ).
- Install the right front tire and wheel assembly.
- Connect both of the negative battery cables.
