Bottle, Pressurized Coolant: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

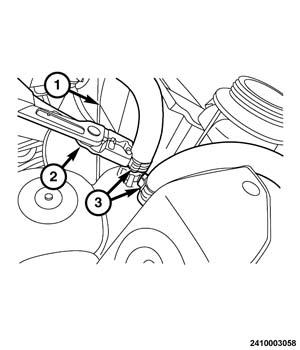

- Using the hose clamp pliers (2) (special tool #10288, Pliers, Hose Clamp) install the two coolant hose (3) onto the coolant bottle (1).

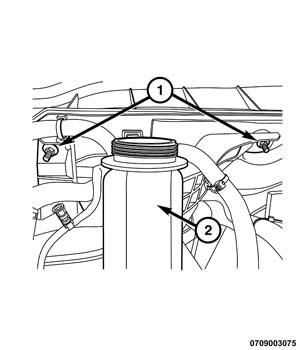

- Install the coolant bottle (2). Tighten the two nuts (1) to 9 N.m (80 in. lbs.).

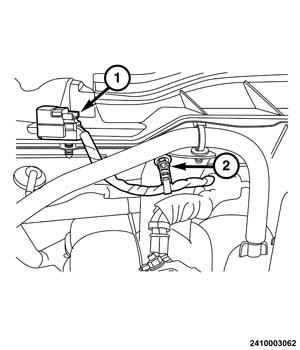

- Install wire harness onto stud (2) and attach wire harness connector (1) to cowl.

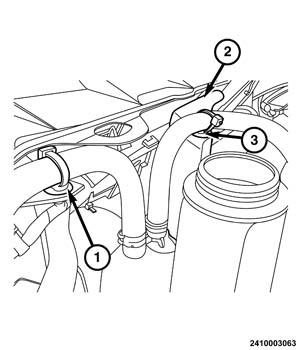

- Attach the two coolant hose retainers (1 and 3).

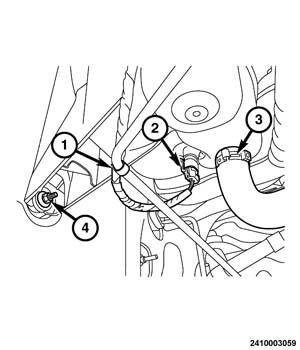

- Install the coolant recovery bottle lower nut (4). Tighten nut (4) to 9 N.m (80 in. lbs.).
- Using the hose clamp pliers (special tool #10288, Pliers, Hose Clamp), install the lower coolant hose (3) to coolant bottle.
- Connect the coolant level sensor wire harness connector (2).
- Install the right battery tray. Refer to TRAY, BATTERY, INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect both negative battery cables.
