Spring, Front Coil: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

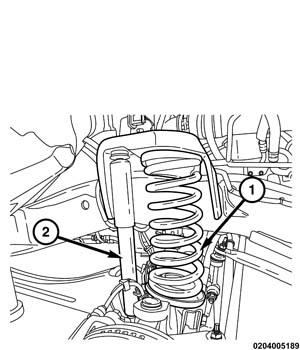

When installing the front coil springs, the part number label tag (1) must be positioned down closest to the axle spring seat.
- Install the upper and lower spring isolators (if needed).NOTE:
Rotation of the spring and prying down slightly on the axle will aid in installation.
- Position the coil spring into the upper isolator mount. It may be necessary to rotate the spring while installing.
- Raise the axle into position until the spring seats in the lower axle isolator mount.

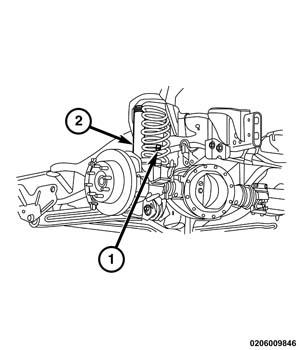

- Install the stabilizer bar links (2) and shock absorbers at the axle and tighten fasteners to specifications. Refer to FRONT, LINK AND COIL, TECHNICAL SPECIFICATIONS .

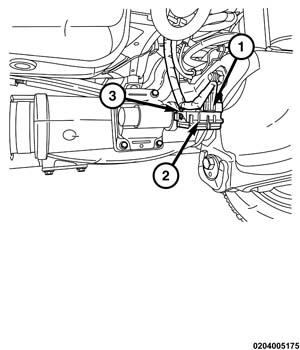

- Connect the electrical connector (1) and retainer (3) to the axle actuator (2).
- Remove the hydraulic jack from under the axle.
- Install the front wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
- Install the wheel and tire. Refer to WHEELS, STANDARD PROCEDURE .
- Remove the supports and lower the vehicle.
