Rollers, Wire Rope Guide: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

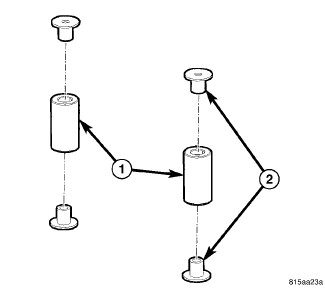

- Install the roller bushings (2) onto the rollers (1).

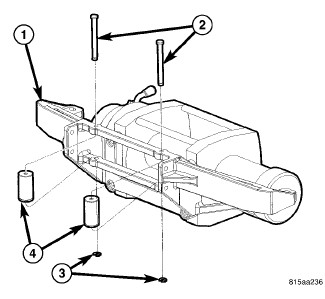

- Install the rollers (4) and install the axle rods (2).
- Install the clips (3).

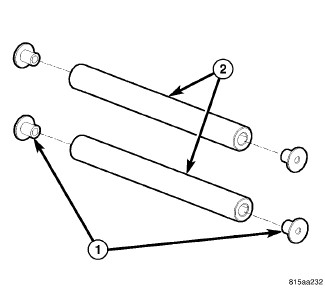

- Install the roller bushings (1) onto the rollers (2).
- Install the roller axle rods (3) and install the rollers (4) onto the support bracket (2).
- Install the clips (1).
- Store the winch hook on the most outboard loop of the tow hook.

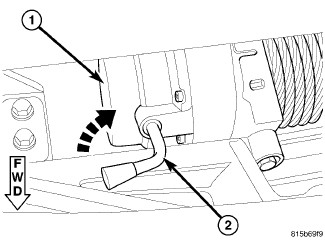

- Engage the clutch lever (2) and remove the slack from the wire rope.
