Glass, Sunroof: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0083795Courtesy of CHRYSLER GROUP, LLC
  1. Move the glass panel to the full closed position.
  2. Slide sunshade rearward to the open position.
  3. Separate the mechanism covers (2) from the tabs (1) on the glass panel.
    GC0083791Courtesy of CHRYSLER GROUP, LLC
  4. Remove the glass panel screws (3).

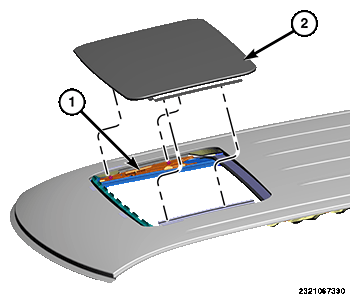

    GC0169698Courtesy of CHRYSLER GROUP, LLC
  5. Lift off glass panel (2) and remove from vehicle.
