Deflector, Wind: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0083793Courtesy of CHRYSLER GROUP, LLC
  1. Open the sunroof fully.
  2. Remove the strap screws (3) from the beam area (1) and release the strap (2).
    GC0083794Courtesy of CHRYSLER GROUP, LLC

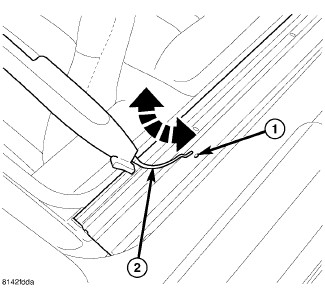

  3. Rotate the deflector up and remove springs (2) from the holes in the frame (1).
