Standard Procedure - Hinge Lubrication

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

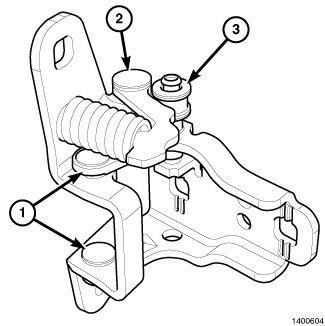

GC0088958Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Door hinge pivot points (1) including the roller (3) and detent lever (2), should be lubricated periodically using Mopar ® Spray White Lube with Lithium or equivalent.

  1. Spray parts as necessary using Mopar ® Spray White Lube W/Lithium or equivalent.
  2. Remove any excess grease.
