Handle, Exterior: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0088968Courtesy of CHRYSLER GROUP, LLC
  1. Remove the carrier plate (3). Refer to PLATE, CARRIER, REMOVAL .
    GC0088956Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (1) and remove the exterior handle (2) from the door.

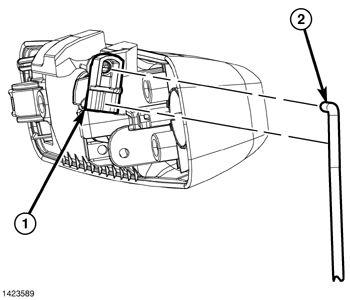

    GC0088971Courtesy of CHRYSLER GROUP, LLC
  3. Release the clips (1) and disconnect the linkage (2) from the handle.
