Section 1564 (Body - Interior & Exterior - 2500 Hd): Interior: Visor: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When removing or installing the screws (1), be certain to avoid any wiring or drain tube interference.

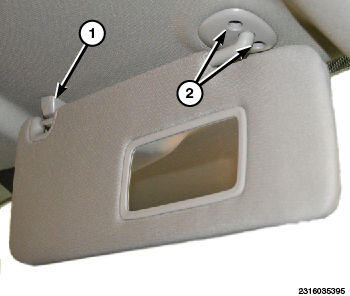

- Separate the visor from the support (1) and remove the screws (2) that secure each sun visor to the roof panel.

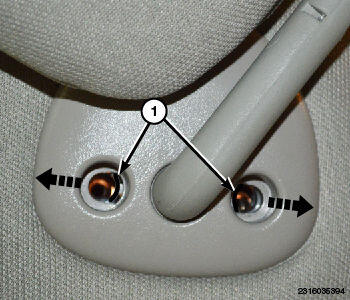

- Using a small flat bladed tool or equivalent, release the retaining tabs (1) and separate the visor from the headliner.
- If equipped, disconnect the wire harness connector for the illuminated vanity mirror.
