Panel, Cab Back Trim: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

If equipped, remove the rear storage compartment. Refer to BIN, STORAGE, LID, REMOVAL .

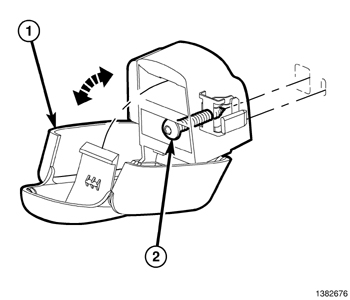

If equipped, using a (special tool #C-4755, Trim Stick) or equivalent, disengage the latch (1) for the utility hook cover and open the cover to gain access to the screw (2) that secures the utility hook to the rear cab back panel.

Courtesy of CHRYSLER GROUP, LLC
On two door models, remove the lower B-pillar trim panels. Refer to REMOVAL .

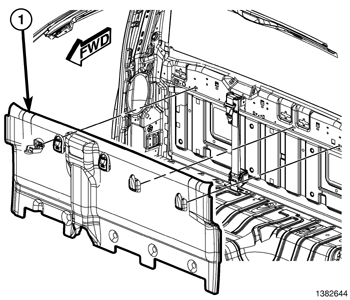

On two door models, remove the lower seat belt anchor and remove the cab back panel (1).

Courtesy of CHRYSLER GROUP, LLC
On four door models, remove the child seat tether straps from the rear cab back panel (2). Refer to ANCHOR, CHILD SEAT, REMOVAL .
On four door models, remove the center seat belt trim bezel. Refer to RETRACTOR, SEAT BELT, REMOVAL .
On four door models, remove the lower C-pillar trim panels. Refer to REMOVAL .

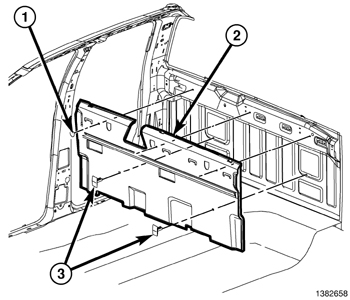

On four door models, remove the push-pin fasteners (1 and 3) that secure the rear cab trim panel (2) to the rear cab back panel and remove the trim panel.
