Mega Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

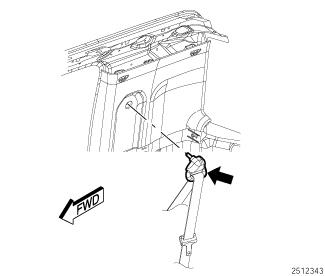

GC0137173Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lower C-pillar trim. Refer to REMOVAL  .
  2. Separate the turning loop cover and remove the turning loop bolt. Refer to ADJUSTER, SEAT BELT TURNING LOOP, REMOVAL .

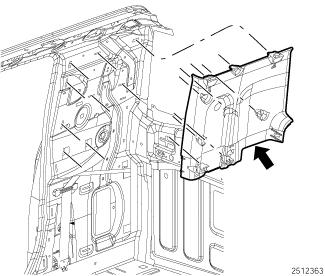

    GC0137174Courtesy of CHRYSLER GROUP, LLC
  3. Pull the upper trim off and release the retaining clips.
