Standard Cab
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the lower B-pillar trim. Refer to REMOVAL
.

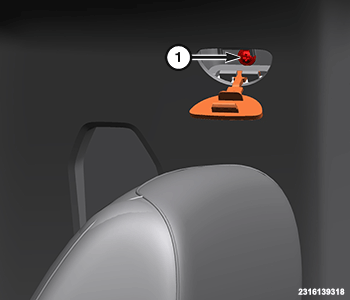

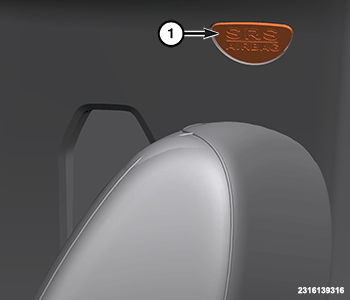

- Using a trim stick or equivalent, open the airbag applique (1).

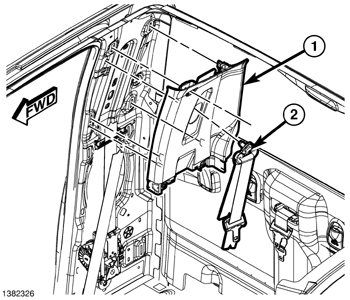

- Remove the screw (1) that secures the panel to B-pillar.
- Separate the turning loop cover (2) and remove the turning loop bolt.
- Pull the upper trim (1) off and release the retaining clips.
