Quad Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

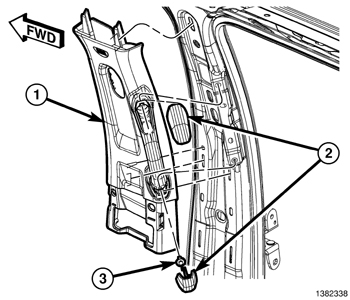

GC0089055Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lower B-pillar trim. Refer to REMOVAL  .
  2. Using a small flat-bladed tool, carefully open the two fastener covers (2) located on the grab handle.
  3. Remove the two bolts (3) that secure the grab handle to the B-pillar and remove the grab handle.
  4. Separate the seat belt turning loop cover and remove the turning loop bolt.
  5. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips that secure the upper trim (1) to the pillar and remove the trim panel.
  6. Remove the seat belt from the trim.
