Standard Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

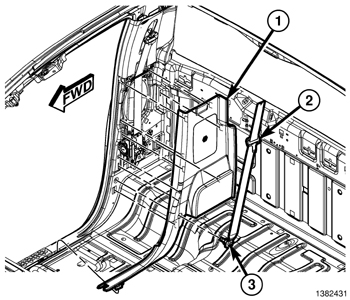

GC0089052Courtesy of CHRYSLER GROUP, LLC
  1. If equipped, remove the rear storage bin. Refer to BIN, STORAGE, LID, REMOVAL .
  2. Remove the lower seat belt anchor bolt (3).
  3. Separate the forward clip.
  4. Separate the remaining retaining clips and remove the lower trim (1).
