Quad Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

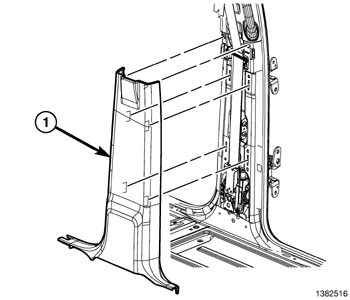

GC0089053Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front door cowl trim panel. Refer to PANEL, COWL TRIM, REMOVAL .
  2. Remove the rear door scuff plate. Refer to PLATE, SCUFF, REAR DOOR SILL, REMOVAL .
  3. Release the retaining clips and remove the trim panel (1).
