Mirror, Rearview: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

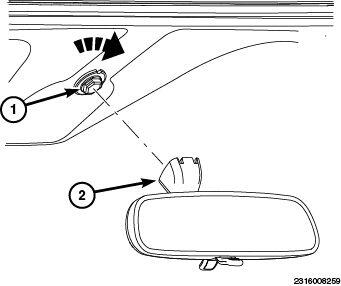

GC0157409Courtesy of CHRYSLER GROUP, LLC
  1. Twist the mirror assembly (2) clockwise and release the mirror from the aluminum button (1) attached to the windshield.
