Load Floor, Non-Sliding: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Move the rear seat cushion (1) to the up position.
- Remove the two nuts (2) that secure the rear of the load floor (3) to the floor panel.

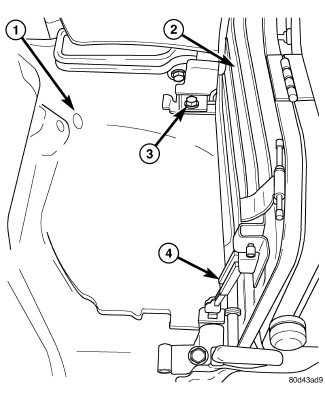

- Move the load floor (2) to the up position.
- Remove the two bolts (3) that secure the load floor to the floor panel (1) and remove the load floor.
- If required, remove the support cylinder (4).
