Standard Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Hands should be clean or clean cloth gloves used when handling the headliner to avoid damage to the headliner.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the A-pillar trim. Refer to PANEL, A-PILLAR TRIM, WITH GRAB HANDLE, REMOVAL .
  3. Remove the upper B-pillar trim. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
    GC0089041Courtesy of CHRYSLER GROUP, LLC

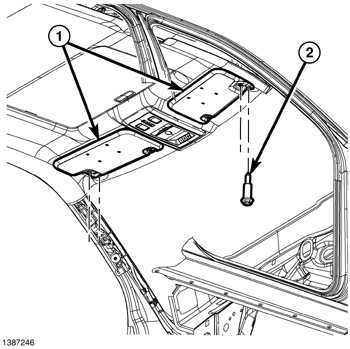

  4. Remove the screws and remove the visor supports.
  5. Remove the screws (2) and remove the visors (1). Disconnect the electrical connectors, if equipped.
    GC0089042Courtesy of CHRYSLER GROUP, LLC

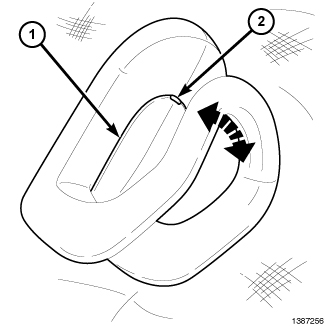

  6. Using a small flat bladed tool, open the coat hook screw cover (2) and remove the screws and coat hooks.
    GC0089043Courtesy of CHRYSLER GROUP, LLC

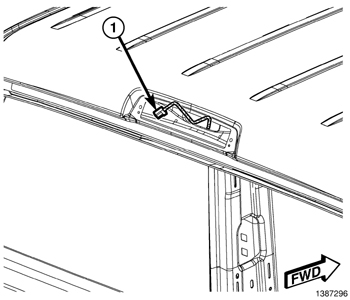

  7. Disconnect the CHMSL wiring electrical connector (1).
    GC0089044Courtesy of CHRYSLER GROUP, LLC

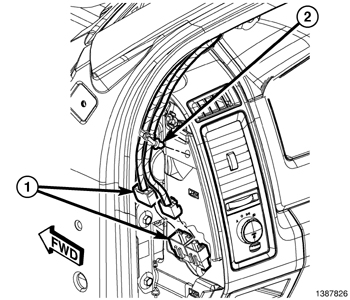

  8. Remove the instrument panel side trim covers and disconnect the electrical connectors (1).
  9. Separate the support push pin fasteners (2).
    GC0089045Courtesy of CHRYSLER GROUP, LLC

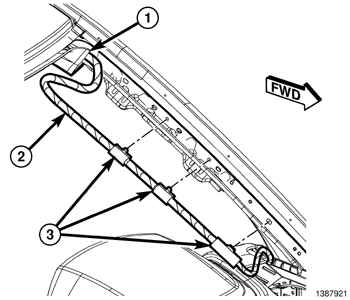

  10. Disconnect the A-pillar wiring and clips (3).
  11. Remove the headliner.
