Console, Overhead, Front: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0087703Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Lower the front of the headliner. Refer to HEADLINER, REMOVAL .
    NOTE:

    Some models may require the lowering of headliner to access retaining clips to avoid damage to headliner.

  3. Using your fingertips, grasp the sides of the overhead console and pull straight down evenly to disengage the four snap clips.

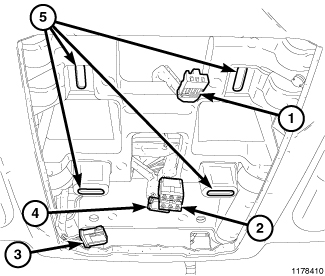

    GC0087704Courtesy of CHRYSLER GROUP, LLC
  4. Lower the overhead console from the headliner far enough to access the wire harness connectors.
  5. Disconnect the reading lamp wire harness connector (1).
  6. Disconnect the sunroof switch wire harness connector, if equipped.
  7. Disconnect the inferred temperature sensor wire harness connector (4), if equipped.
  8. Disconnect the power sliding glass wire harness connector (2), if equipped.
  9. Disconnect the Homelink® transceiver wire harness connector (3), if equipped.
  10. Remove the overhead console from the vehicle.
