Console, Floor: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.

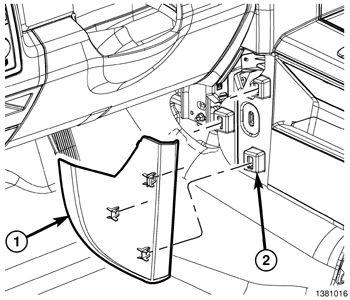

    GC0089036Courtesy of CHRYSLER GROUP, LLC
  2. Remove the console closeouts (1) from the floor console (2).
    GC0180013Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the rear retaining tab of the front rubber mat (1) and remove.

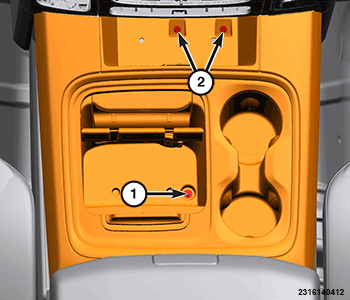

    GC0180008Courtesy of CHRYSLER GROUP, LLC
  4. Remove the two front screws (2).

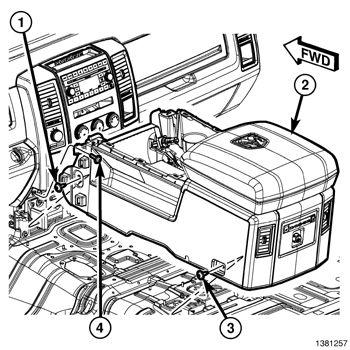

    GC0089038Courtesy of CHRYSLER GROUP, LLC
  5. Remove the screws (1, 3 and 4).
  6. Disconnect the power outlet wire harness connector, if equipped.
  7. Disconnect the wire harness connectors and remove the console.
