CUPHOLDER, Instrument Panel: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

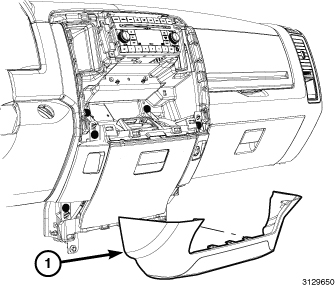

GC0143901Courtesy of CHRYSLER GROUP, LLC
  1. Remove the center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  2. Remove the lower closeout trim (1).

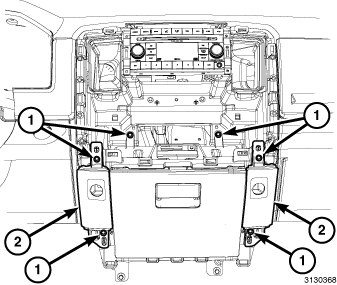

    GC0143902Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (1) and separate the side trim (2).
    GC0143900Courtesy of CHRYSLER GROUP, LLC
  4. Remove the cup holder (1).
