Bezel, Instrument Cluster: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

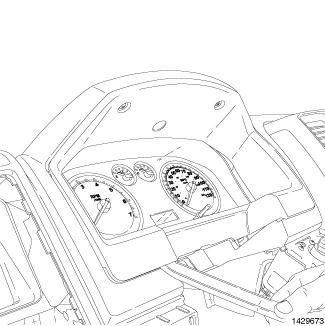

GC0089011Courtesy of CHRYSLER GROUP, LLC
  1. Install the instrument cluster bezel onto the instrument panel and fully engage the retainer clips to the instrument panel.
    GC0089009Courtesy of CHRYSLER GROUP, LLC
  2. Install the fasteners (2) that secure the instrument cluster bezel (3) to the instrument panel (1).
  3. Connect the negative battery cable.
