Prop, Gas: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The hood support cylinders can be replaced one at a time.

Open and support the hood.
CAUTION:
Do not pull on the hood support cylinders at the middle of the support cylinder during removal. Failure to follow this caution can result in damage to the hood support cylinders.

Using a small flat bladed tool, or equivalent (3), release the retaining clip (2) at each end of the support cylinder while carefully pulling the ball socket (1) away from the ball stud (4).

Courtesy of CHRYSLER GROUP, LLC

1 - RETAINING CLIP

2 - BALL SOCKET

3 - BALL STUD

NOTE:

Lift the clips (1) only enough to release the ball studs (3).

Courtesy of CHRYSLER GROUP, LLC

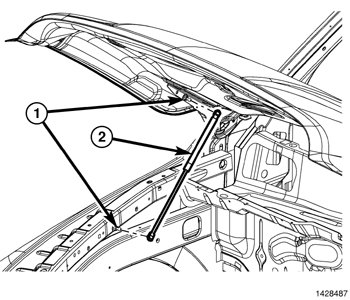

Disconnect the hood support cylinder (2) from the hood and the fender rail (1).
