Cable, Hood Release: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0089000Courtesy of CHRYSLER GROUP, LLC
  1. Release the cable end (1) from the latch mechanism (5) and release the collar (2) from the latch.
  2. Release the support clip (4).
    GC0089001Courtesy of CHRYSLER GROUP, LLC
  3. Remove the three hood release cable retainers (2) from the upper radiator crossmember and the left fender rail.

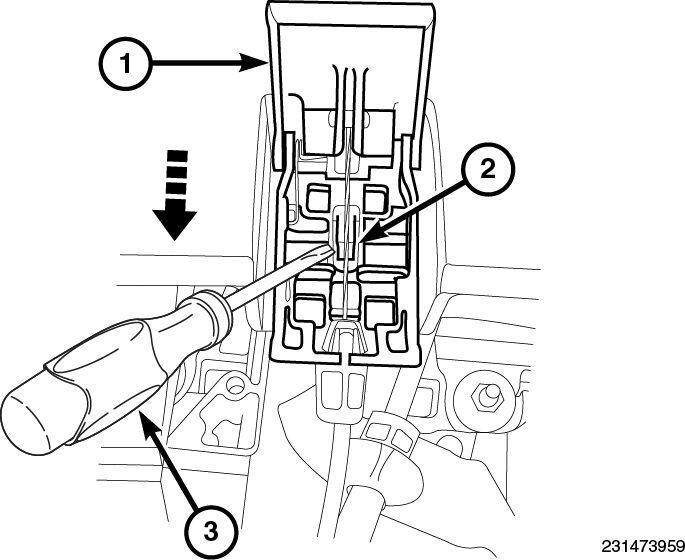

    GC0154575Courtesy of CHRYSLER GROUP, LLC
  4. From inside the vehicle using a small flat bladed tool (3), release the clip (2) attaching the hood release handle (1) to the instrument panel.
  5. GC0154618Courtesy of CHRYSLER GROUP, LLC

    Separate the handle (1) by pulling down and release the handle assembly tabs from the instrument panel.

  6. Remove the grommet from the cowl panel and remove the hood release cable and handle assembly.
    GC0089002Courtesy of CHRYSLER GROUP, LLC
