Striker, Door Latch: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

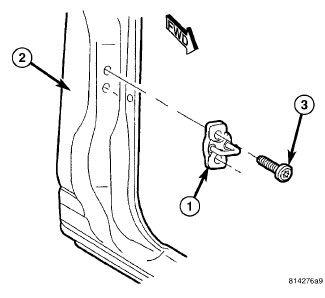

- Using a grease pencil or equivalent, mark the location of the door latch striker (1) on the B-pillar (2).
- Remove the two bolts (3) that secure the door latch striker to the B-pillar and remove the striker.
